Anritsu X-ray Inspection System for Large Products is designed for products in large cartons, boxes, cases, trays, and bags. It is ideal for the inspection of raw materials in receiving process as well as products in shipment process. In addition to detecting contaminants, the system also simultaneously offers product verifications such as count check and missing inspection. Suitable for the inspection of raw materials in receiving process as well as products in shipment process. Product size: Maximum width 590 mm, maximum height 250 mm.

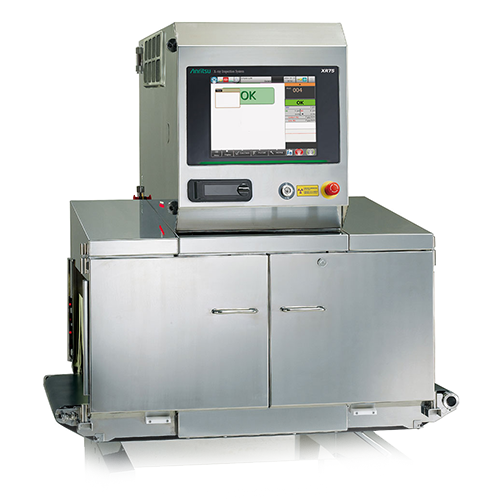

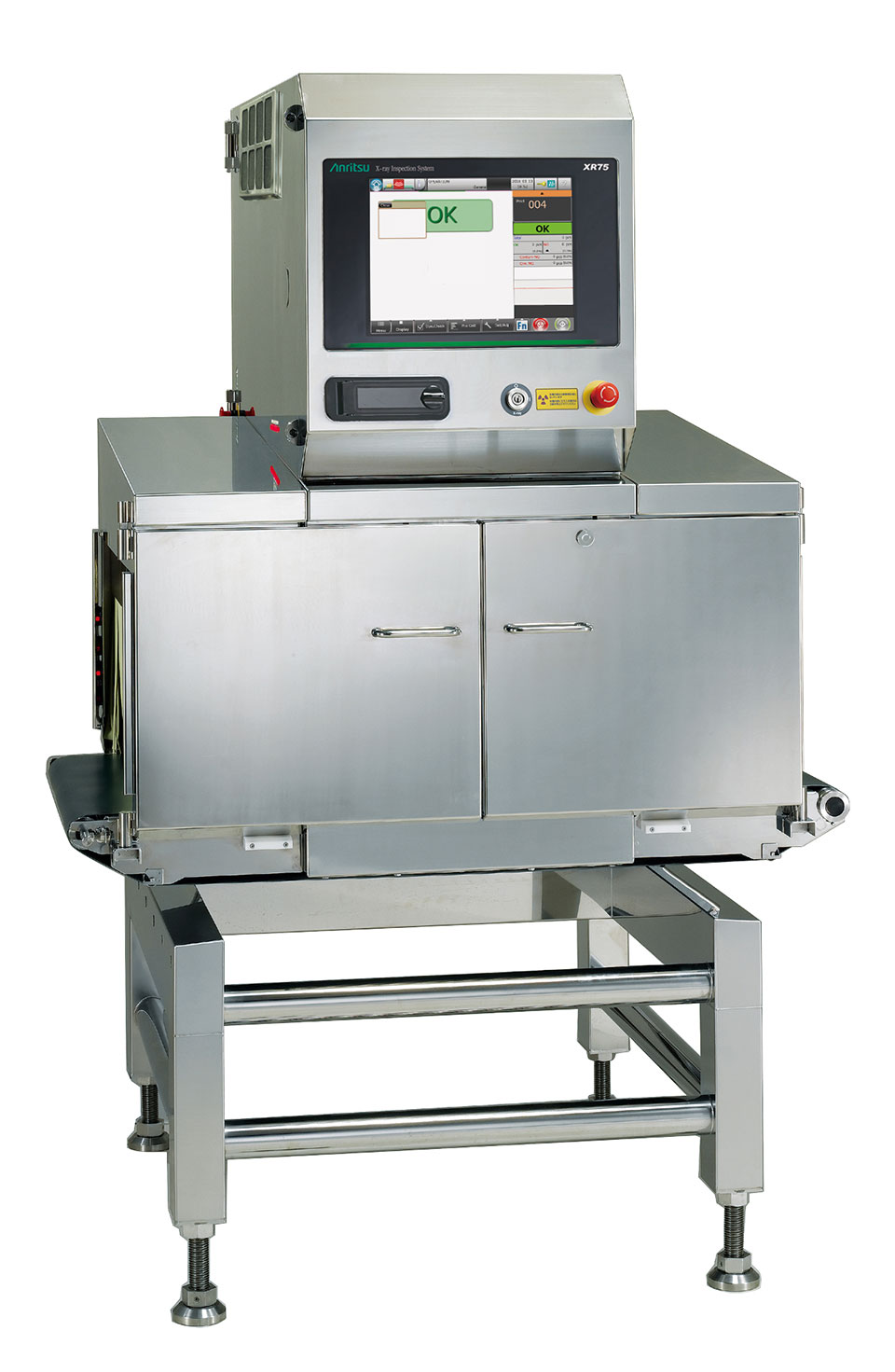

XR75 Series Large Model X-Ray
For products in large cartons, cases and bags.
Specifications

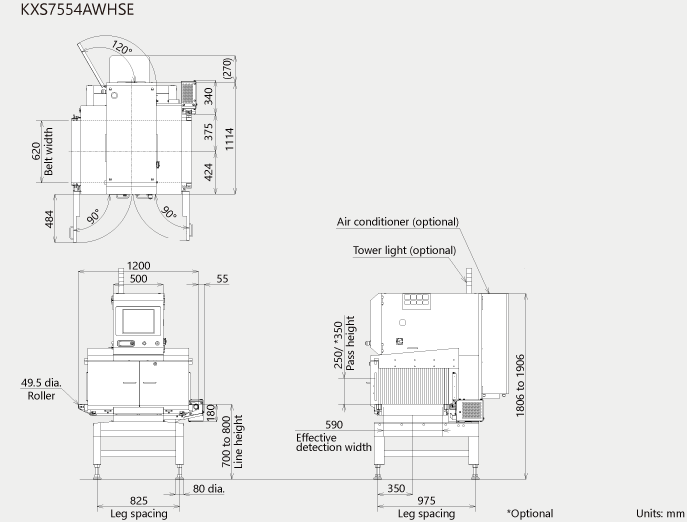

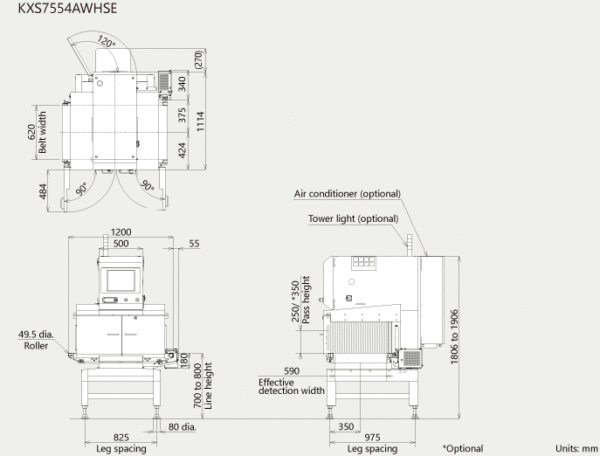

Model | KXS7554AWHSE | |
Detection sensitivity1 | Fe sphere and SUS sphere 0.4 mm dia. | |
X-ray output | Tube voltage 30 to 80 kV, tube current 0.4 to 10.0 mA, output 350 W | |
Safety | X-ray leakage maximum 1.0 μ Sv/h or less, prevention of x-ray leakage by safety devices | |
Display | 15-inch color TFT LCD | |
Operation method | Touch panel (with touch buzzer) | |
Detection area2, 3 | Maximum width 590 mm, maximum height 250 mm (Pass height of 350 mm is available as an option.) | |
Belt width | 620 mm | |
Preset memory | 200 | |
Belt speed / Maximum product weight4 | Dry environment | 10 to 30 m/min maximum 50 kg 31 to 40 m/min maximum 40 kg 20 to 70 m/min maximum 20 kg (optional) |
Wet environment where water or oil is scattered on the conveyor | 10 to 30 m/min maximum 40 kg 31 to 35 m/min maximum 30 kg 36 to 40 m/min maximum 20 kg 20 to 60 m/min maximum 20 kg (optional) 61 to 70 m/min maximum 10 kg (optional) | |
Power requirements | 100 Vac to 120 Vac ±10% or 200 Vac to 240 Vac ±10% (However, switch the tap of a transformer), single phase, 50/60 Hz, 1.2 kVA (1.9 kVA with optional air conditioner), rush current 70 A (typ.) (40 ms or less) | |
Mass5 | 480 kg (525 kg with optional air conditioner) | |
Environmental conditions6, 7 | Temperature: 0°C to 35°C (0°C to 40°C with optional air conditioner), relative humidity: 30% to 85%, non-condensing | |
Protection class | Conveyor: IP66 Other parts: IP40 | |
Exterior | Stainless steel (SUS304) | |
