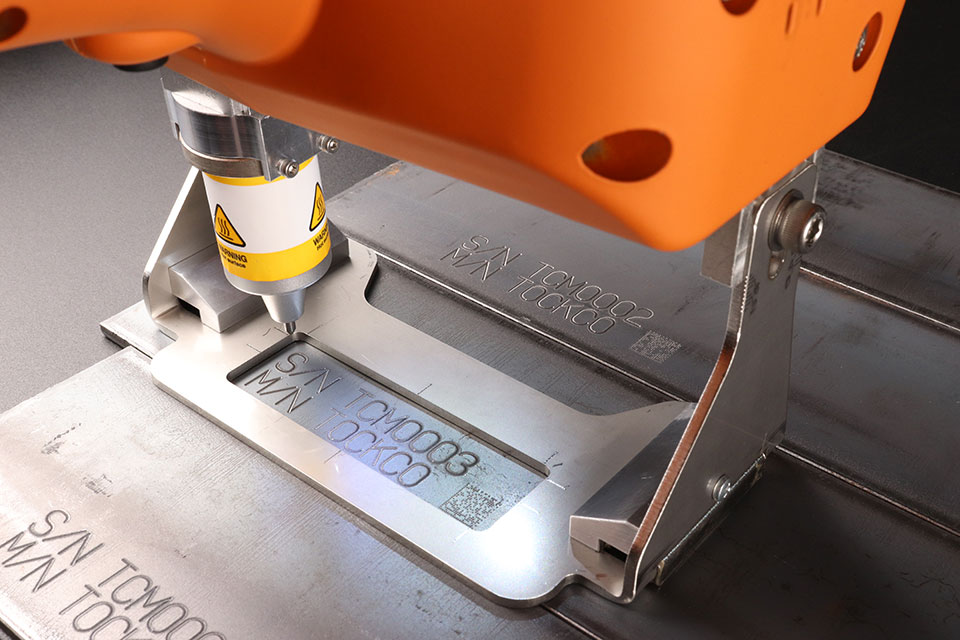

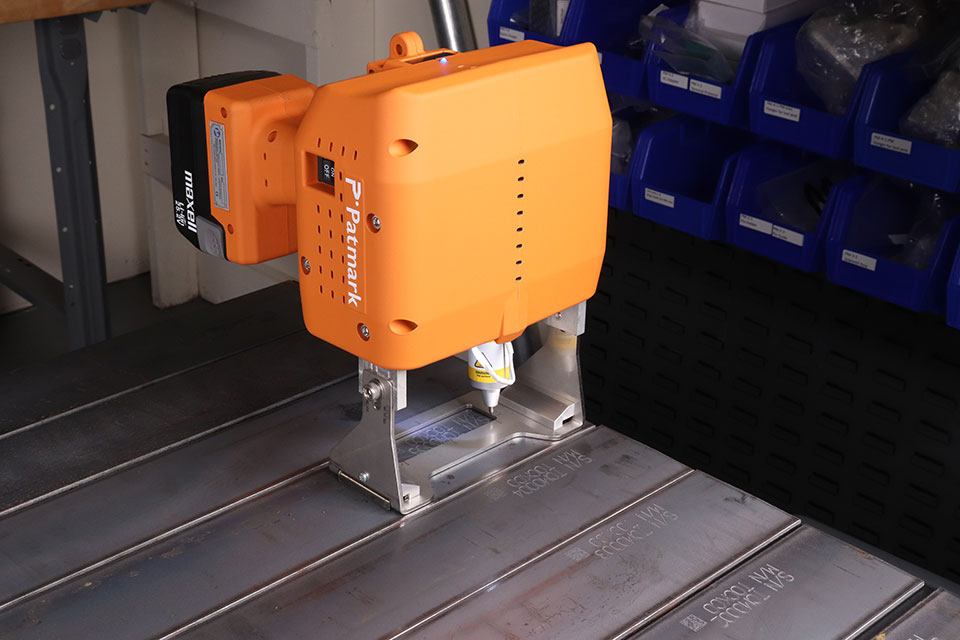

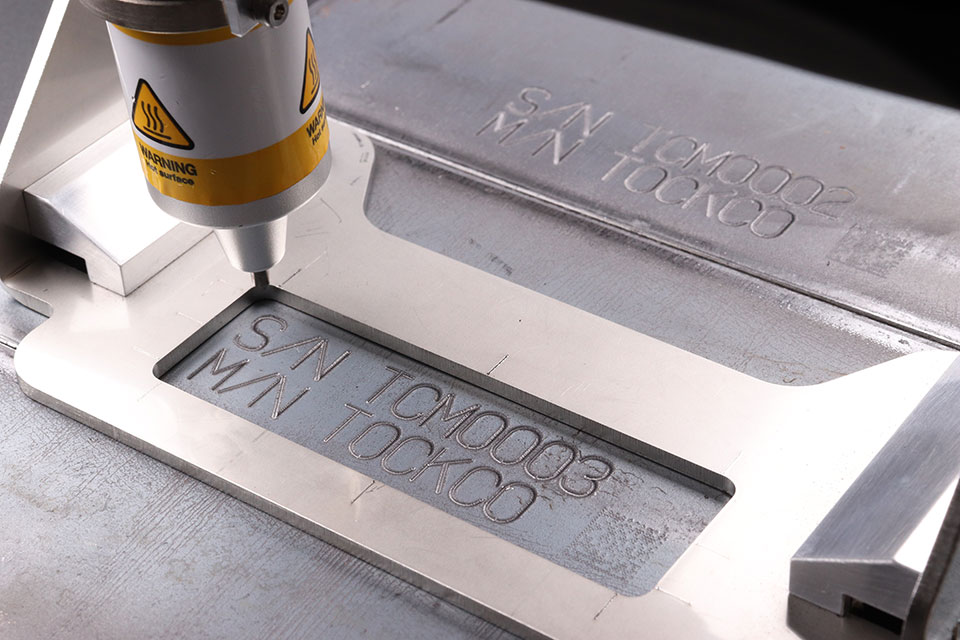

The Patmark 2080 is a portable, battery operated dot peen part marker. It can mark on everything from plastics to hardened metals up to 62 RC. With easy-to-use software compatible with Android and iOS you can get a clean and clear mark as small as 1mm, every time.

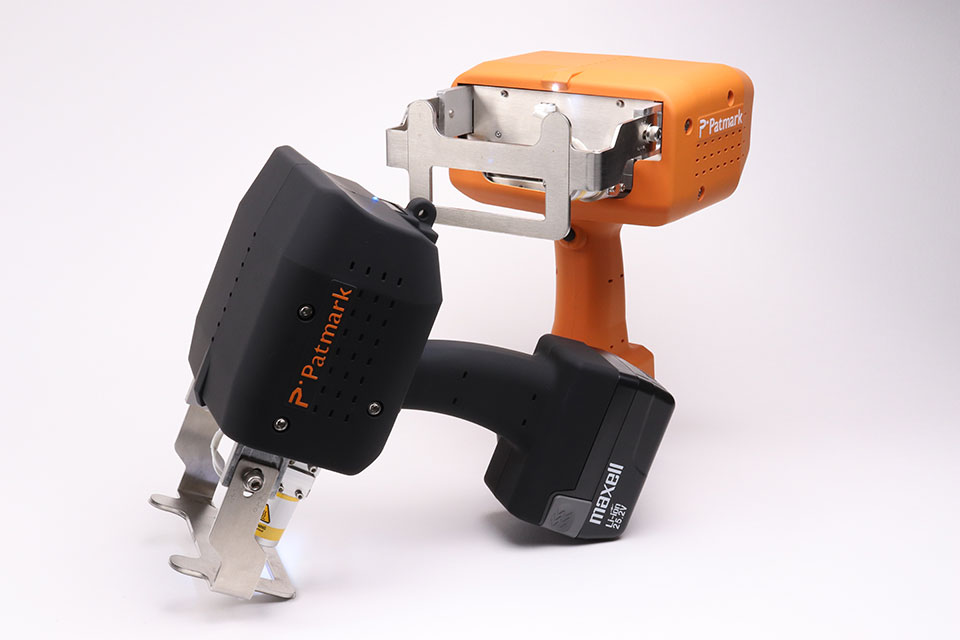

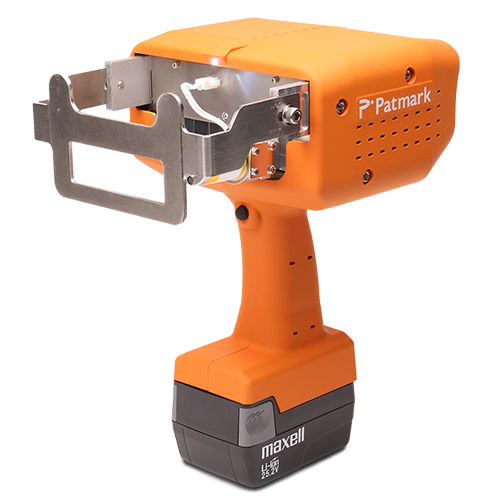

Patmark Plus 2080
The largest portable dot peen marking machine in the market. Connects through local Wi-Fi or USB Cable (included).
Specifications
| Power Supply | AC Adaptor | AC100V ~ 240V 50/60Hz |
|---|---|---|
| Battery | *25.2V 3.0Ah | |
| Battery Charger | Input 100~ 240V 50/60Hz | |
| Weight | With AC Adaptor | 3.0kg (6.6lbs) |
| With Battery | 3.5kg (7.8lbs) | |
| Dimensions | 7.2″ x 10.0″x 11.7″ | |
| Marking area | 20mm(0.8in) x 80mm(3.1in) | |
| Software | App Based (iOS & Android) | Wi-Fi |
| Windows Based Software | Wi-Fi or USB (included) | |
| Type of markable workpieces | Metal (up to about HRC62), plastic, paper, and wood | |
*The lithium-ion battery is subject to change without notice at the discretion of the battery manufacturer.
Specifications of the App Based Software and the Windows Based Software
| Types of text | Alphabet, numbers, and various symbols | |
|---|---|---|
| Standard fonts | PM font, 5×7 font *Selectable on Windows software | |
| Long text marking (marking over 15mm) | Equipped with an automatic classification function. | |
| Multiple-line marking | App | One line only |
| Windows Software | Multiple line setting possible up to 30 fields | |
| Text height | App | Choose from S, M, and L *1 to 20mm, in 1 mm increments. |
| Windows Software | Choose from 1mm to 20mm, in 0.1 mm increments. | |
| Marking force | App | Choose from weak, medium, and strong. *Value from 0 (low) and 9 (strong) can be specified in the default setting menu. |
| Windows Software | Enter a value between 0 (low) and 9 (strong). | |
| Font quality | App | Choose from low, medium, and high. *Value from 1 (low) and 9 (high) can be specified in the default setting menu. |
| Windows Software | Enter a value between 1 (low) and 9 (high). | |
| Logomarks | Windows Software | BMP and JPG data – browse and trace in Logo Editor |
| DXF data – auto covet *Only when connected to a PC. | ||
| 2-D code | Windows Software | QR code (up to 80 alphanumeric characters and symbols) |
| Data matrix (up to 80 alphanumeric characters and symbols) | ||
| Serial numbers | Windows Software | Incrementable from 1 to 9999. |
| Date marking | Windows Software | Year, month, day, hour, minute, second, Julian date, shift |
| Files | Storable 255 files into Patmark memory. | |
Blueprint
