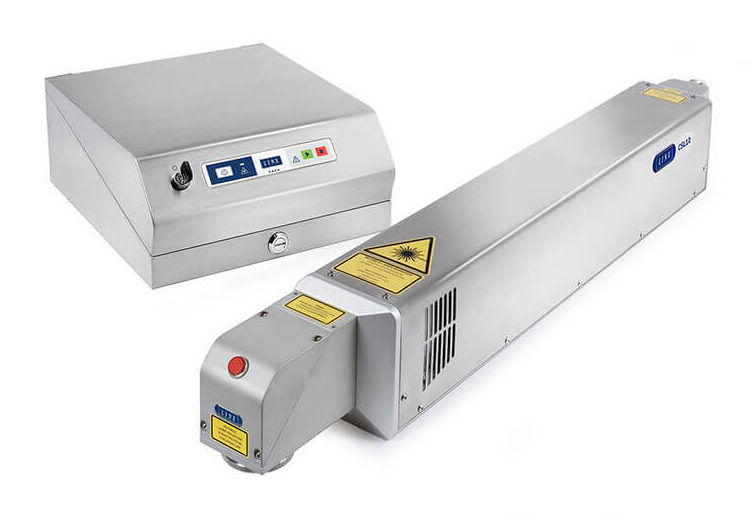

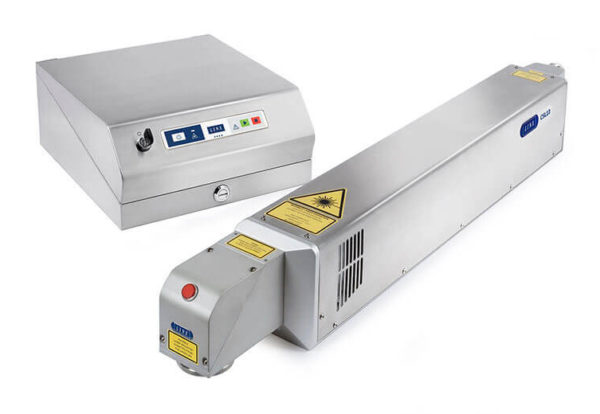

The Linx CSL10 is a high specification, 10 W CO2 scribing laser coder. Designed to be economical yet versatile, it is suitable for a wide range of laser marking applications. Produces complex variable codes and dynamic messages, even on high speed lines for quality coding on a wide range of materials. With a detachable marking head and connectors for easy installation.
Linx CSL10
Fastest 10 W scribing laser coder in its class!!
Benefits
Easy to use

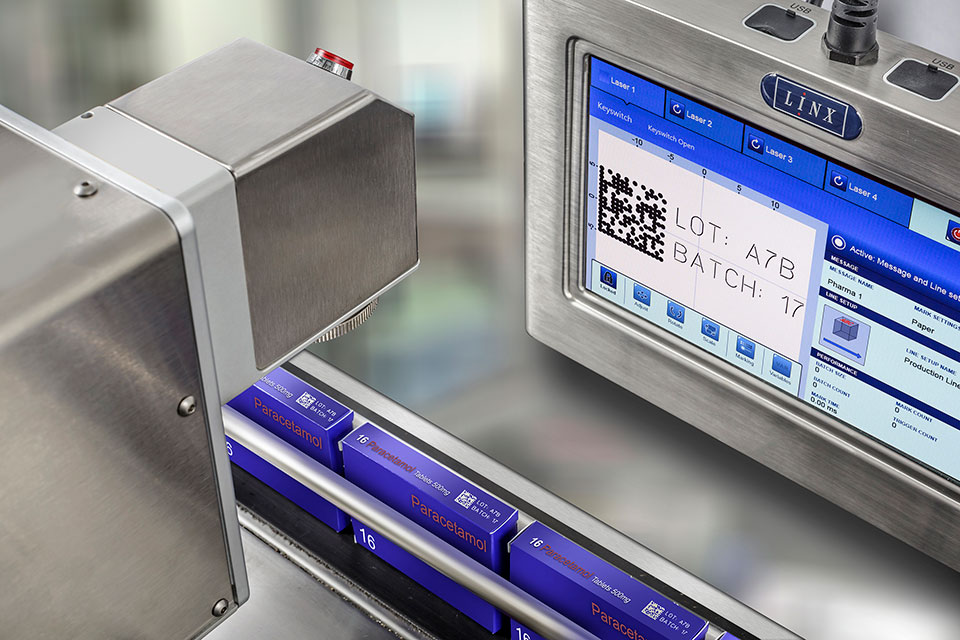

- Easy message creation and management of printing parameters with the large color LinxVision® Touch Screen, and LinxVision software
- Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only
- Easy line integration – detachable marking head with quick disconnect cables
- Multiple beam delivery options allow for coding in any orientation
Meet production targets
- Remote connectivity to access, monitor and control Linx CSL laser coders and receive remote technical support with Linx PrinterNet, a secure, cloud-based service

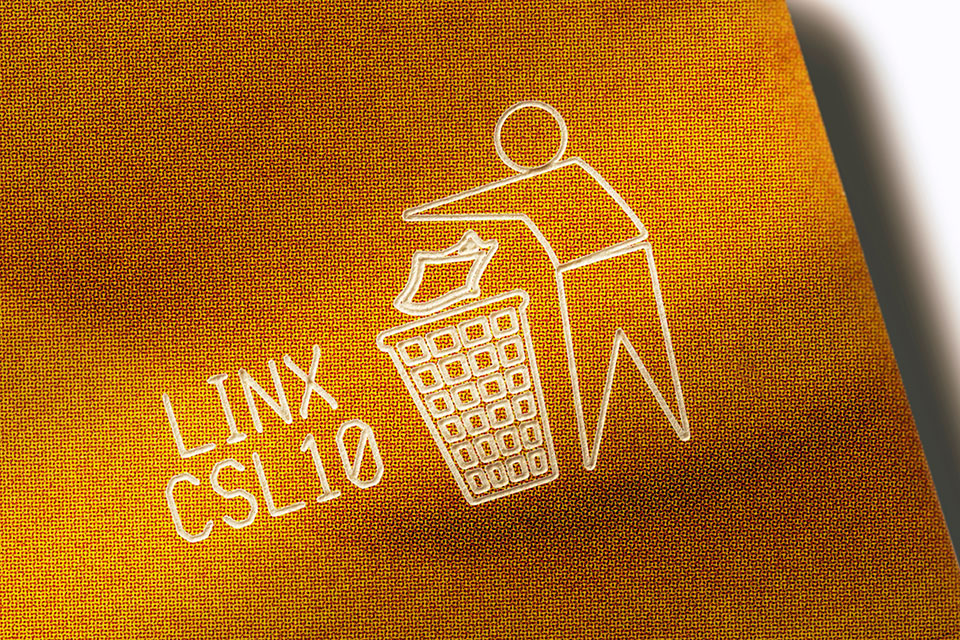

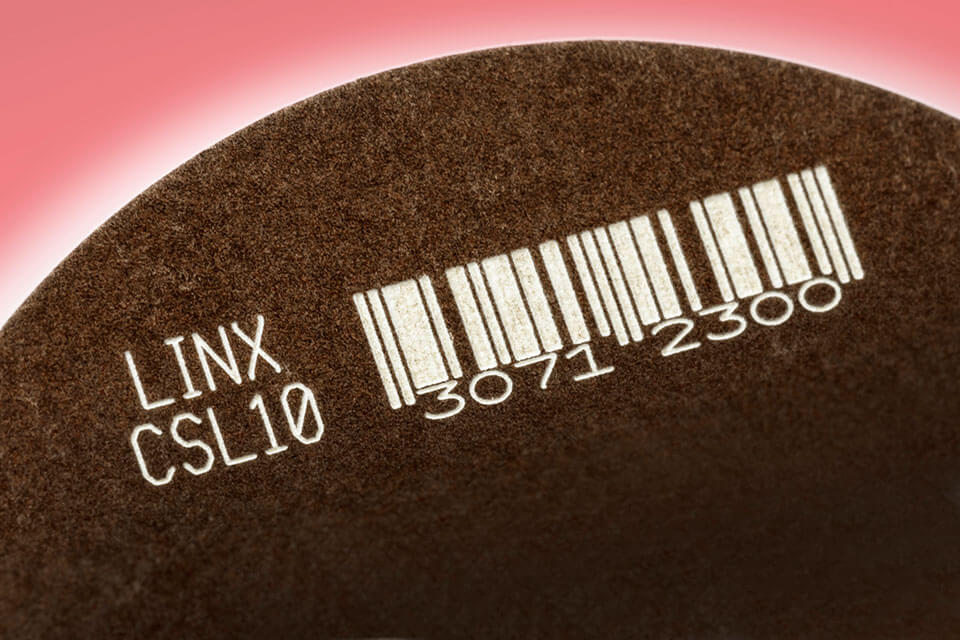

- A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos – on fast lines with no compromise on code quality
- Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market
- Service intervals typically twice that of the industry standard
- No expensive factory air for cooling
Print in more applications
- Over 20,000 different configurations to economically meet your coding requirements
- Wide web applications for large area coding or multiple lines of products

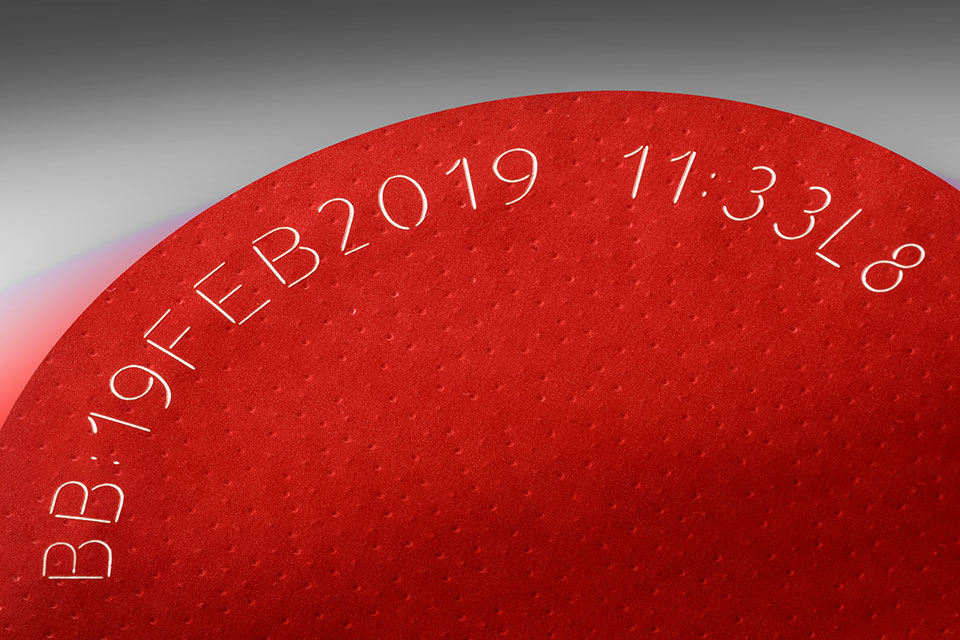

- Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters
- Flip, mirror or curve text – easily code onto difficult shapes
- Tube life is application dependent
Technical Specifications
Printing capability
| CO2 scribing laser coder | |
| Maximum laser output power at lens – 10W | |
| Code options: date, time, static text, variable text, serial numbers, alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats | |
| Line speed | up to 2,952.76 ft/min (code and substrate dependent) |
| Lens and head options (range): | Spot Size 0.0035’’– 0.044’’ |
| Marking Field | 1.14’’ x 1.42’’ – 11.57’’ x 15.98’’ |
| Mark distance | 15.16’’ |
| Number of lines of text | Only limited by character size and marking field size |
| Character height | Up to marking field size |
| Print rotation | 0 – 360° |
| Marking head rotation | 0 – 360° |
| Laser tube wavelengths | 10.6 µm or 9.3 µm |
| Marking head options | 3 head options available as standard |
| Versatile Beam delivery options for easy integration into your production line | Down (90°) or Straight (0°) Shooter |
| IP rating | IP54 as standard, IP65 option |
| Air cooled | Not factory air |
| Laser tube warranty | 2 Years |
| Large volume gas tube can last in excess of 45,000* hours | |
| Tube life may vary according to application | |
