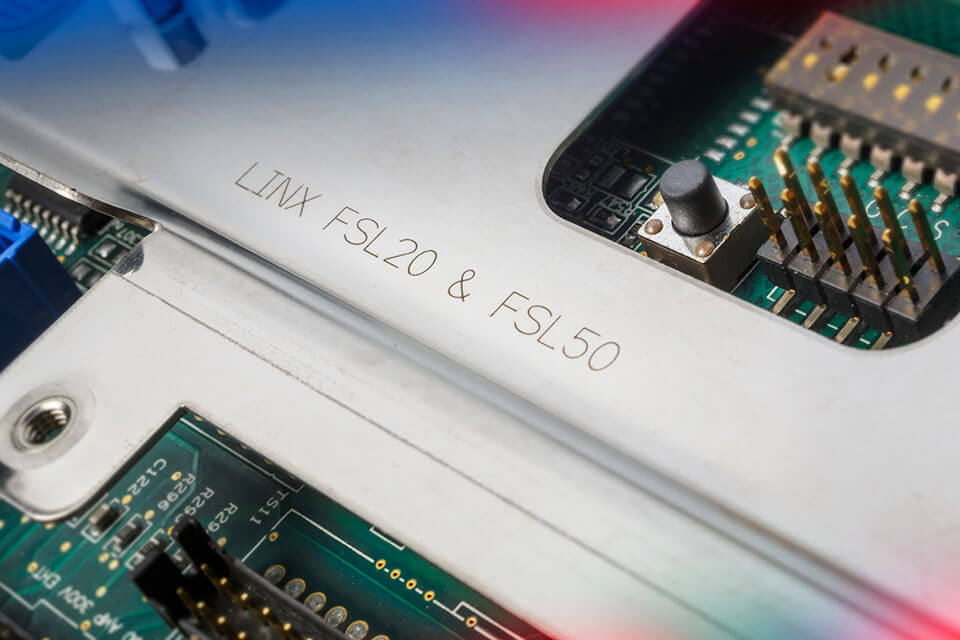

Permanently mark on a wide range of materials, including metal, rubber, plastic and foil packaging. Very fine spot size creates excellent quality codes and makes Linx FSL20 & FSL50 fiber lasers ideal for marking large amounts of information onto small areas or very small components.

Text, machine readable codes, graphics, and logos are all marked with extreme clarity for traceability or brand protection; ideal for pharma, medical, automotive and electronics industries, as well as FMCG packaging.

Benefits

Laser tube life of over 100,000 hours – less downtime
Fine spot size for high quality codes
Two beam orientation options allows coding in any direction
Choice of 4 lenses for codes tailored to your requirements

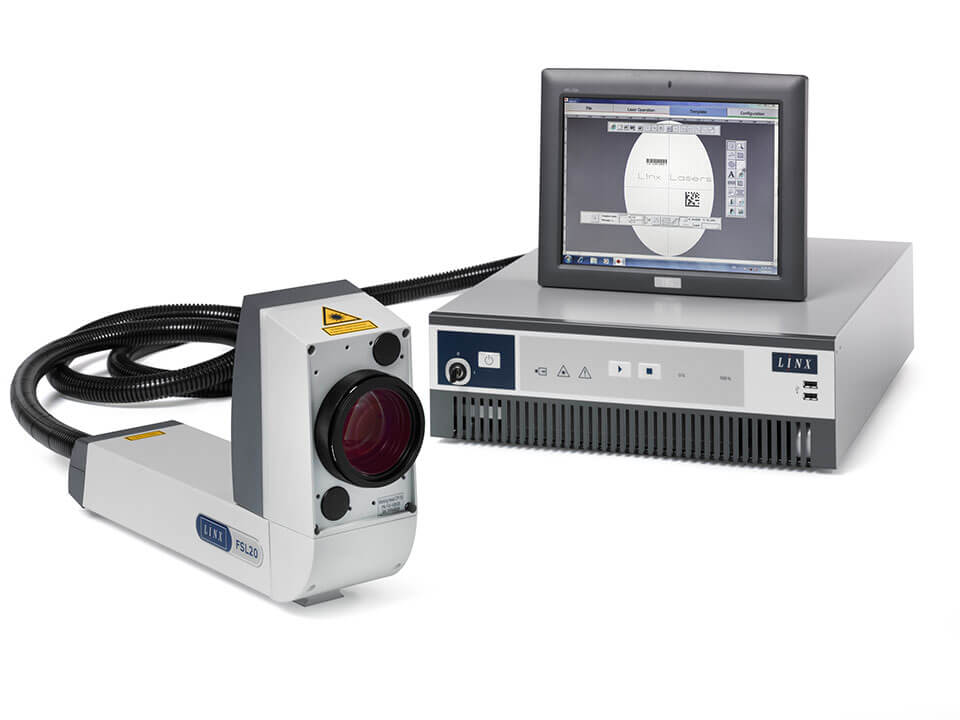

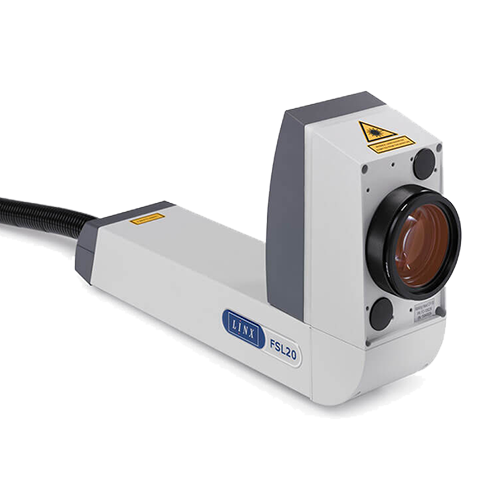

Compact marking head for easy integration onto moving & static lines
Internal air cooling system for increased efficiency and less maintenance
Rapid message creation reduces time spent on setup & changeovers
Extremely efficient use of the laser with no compromise on code quality or speed

Technical Specifications

Marking Formats

Standard fonts (Windows® TrueType®/TTF; PostScript®/PFA, PFB; OpenType®/OTF) ·

Individual fonts such as high-speed or OCR ·

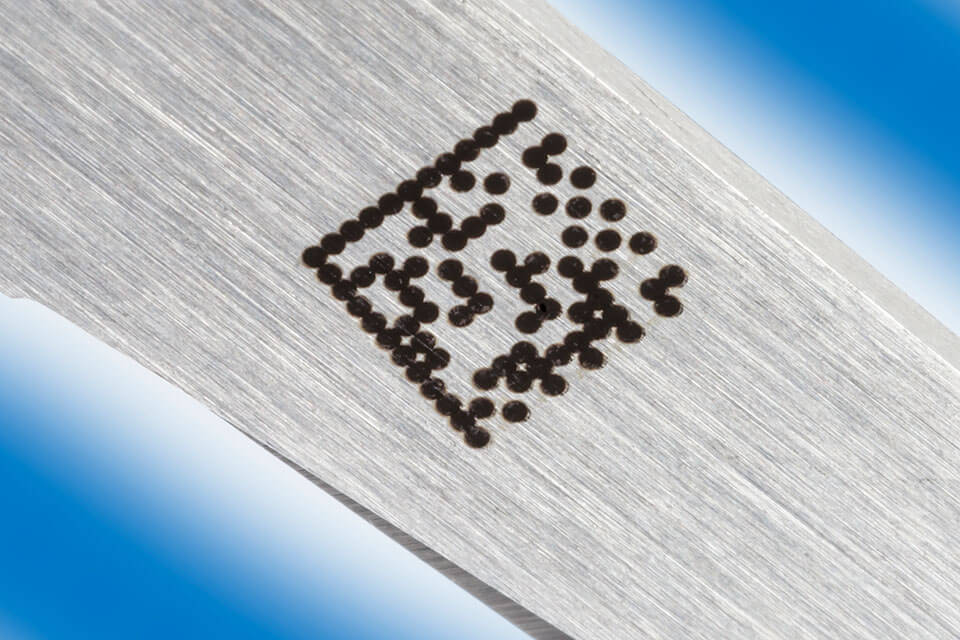

Machine-readable codes: Bar codes: BC25, BC25I, BC39, BC93, EAN 8, EAN 13, BC128, EAN 128, Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP Data matrix 2D codes: ECCOOO, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR ·

Graphics/graphic components, logos, symbols, etc. (the most common file formats such as DXF, JPG, AI can be imported) ·

Linear, circular, angular text marking; rotation, reflection, expansion, compression of marking contents ·

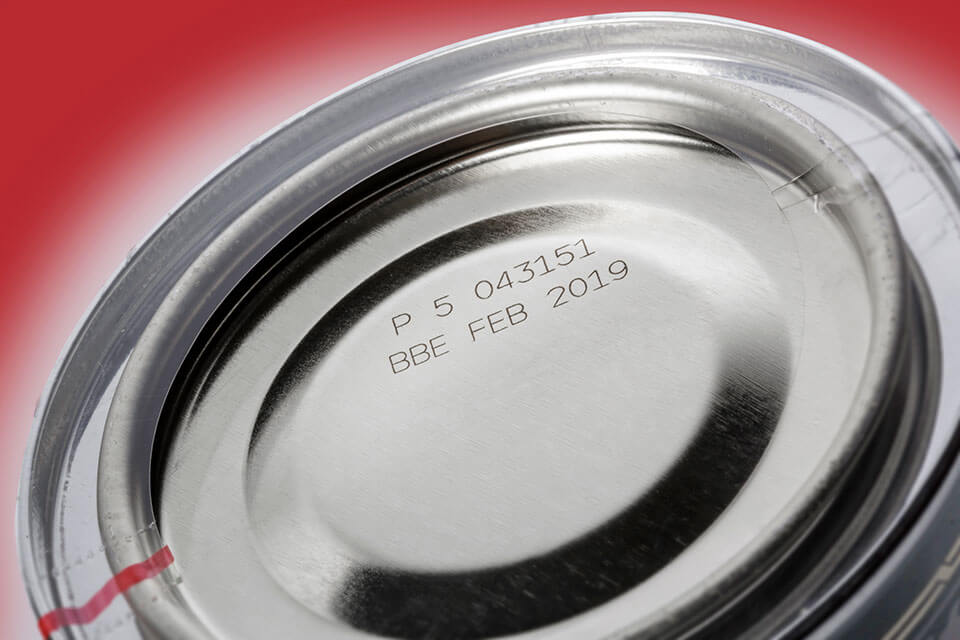

Sequence & serial numbering; automatic date, layer, time coding, real-time clock; online coding of individual data (weight, contents, etc.)

Performance

Line speed	1 to 236.22’’/s
No of lines of text	Only limited by character size and marking field
Character height	Up to marking field
Print rotation	0 – 360 degrees
Operation mode	Pulsed (Q switch)

Physical Characteristics

Material	Painted sheet metal housing
Weight: Marking unit/supply unit	8kg / 19kg
Laser head	IP54
Conduit length	8.86 ft
Minimum bend radius of conduit	3.54’’
Head mounting options	90-degree (standard) and straight-out (option)
Cooling system	Air cooled with automatic overheat detection
Supply voltage / frequency	Auto selection range 100 to 240 V / 50/60 Hz (auto range)
Maximum power consumption	500 VA
Operating temperature range	50 – 104° F ambient
Humidity range	10% to 90% relative humidity, non-condensing

Communication

Ethernet, TCP/IP and RS232, digital I/O’s

Inputs for encoders and product detector triggers

I/O’s for start, stop, external error, job select, trigger, trigger enable, encoder, system ready, ready to mark, marking, shutter closed, error, bad, good signals and machine/ operator interlocks
