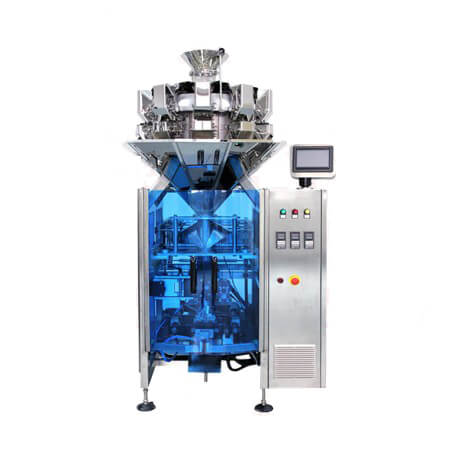

JW-MC461016
Multihead Weighers and packing 2 in 1, the compack machine is widely used to quantitatively package all kinds of the material which are in granular.
| Power Supply | 220V / 50-60 Hz |
| Power Consumption | 4.6 Kw |
| Speed | 65 Wpm |
| Weigh Head Nos | 10 types |
| Film Width | 6.29 – 18.11 in (160 – 460 mm) |
| Machine Speed | 60 bags / min |
| Max Single Dump Cap (g) | 0.35 – 35.27 oz (10 – 1000 g) |
| Volume | 54.10 fl oz (1600 ml) |
| Bag Size | 2.36 – 11.81 in (60 – 300 mm) |
| Film Pulling Driven System | Servo Motor |
| Horizontal Sealing Driven System | Cylinder |
| Gas Consumption | 0.6 m³ / min |
| Gas Pressure | 0.6 Mpa |
| Accuracy | ±0.0035 – 0.052 oz (0.1 – 1.5 g) |
| Machine Size | L: 64.76 x W: 44.88 x H: 98.77 in (1645 x 1140 x 2509 mm) |
