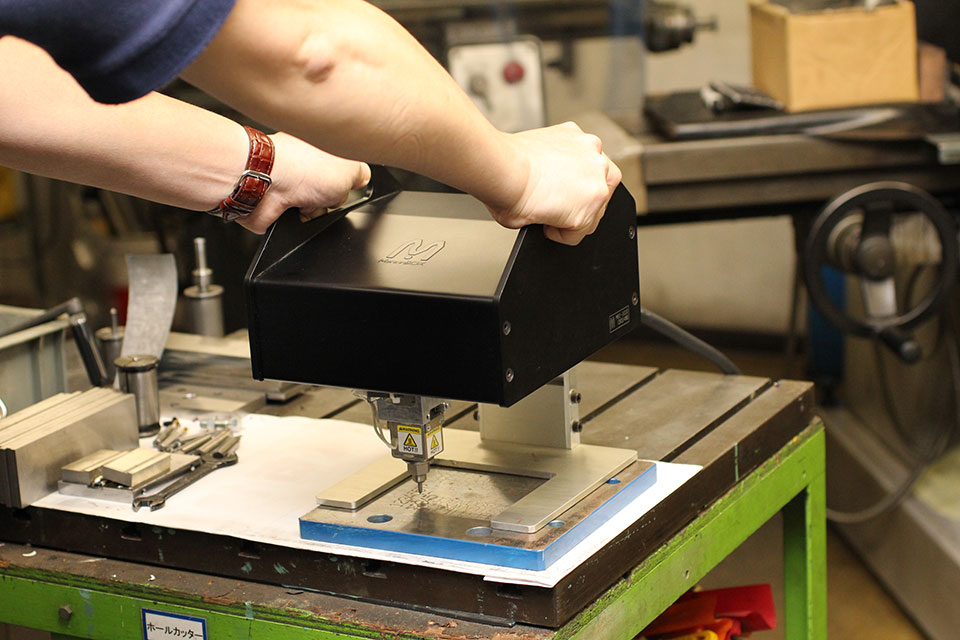

Its design allows the marking head directly on any area that needs to be marked. The MB1010 is easy to use and is ergonomically engineered with easy-access controls and comfortable handles for stability. It comes with a Windows Based Software.
MB1010 Part Marking Machine
Boasting a nearly four-inch marking area (100mm X 100mm), the MarkinBOX 1010 (MB1010) provides flexible part marking capabilities for a wide range of applications.
Specifications
| Marking Area | X axis 4″ (100mm) Y axis 4″ (100mm) |
| Marking Area Dimensions | 7.9″ (W) x 8.6″ (D) x 9″ (H) (200mm x 217.5mm x 228mm) |
| Marking Area Weight | 9.9lbs (4.5Kg) |
| Marking Area Cable | 6′ (2m) cable option : 16′ (5m) cable |
| Marking Stand Weight | 15.4lbs (7Kg) |
| Marking Technology | Solenoid Drive |
Features
- Windows Based Software
• Sketchbook software is Windows based and runs off of Windows XP, 7 and 8. - Flexible, Easy to Use
• Deeper marks are possible with the “Big Solenoid” and 6mm pin option. - Wide Choice of Connectivity
• 6 possible ways to start marking via USB, Bluetooth (PC or Android), Digital I/O, PLC or Ethernet communications. - Fully Electric
• Runs safely and efficiently with maximum uptime and little maintenance. - High Quality Mark
• Guaranteed high quality marks as small as 1 mm. - Flexible Integration
• Can be hand held, mounted or integrated into production. - Available in 3 variations

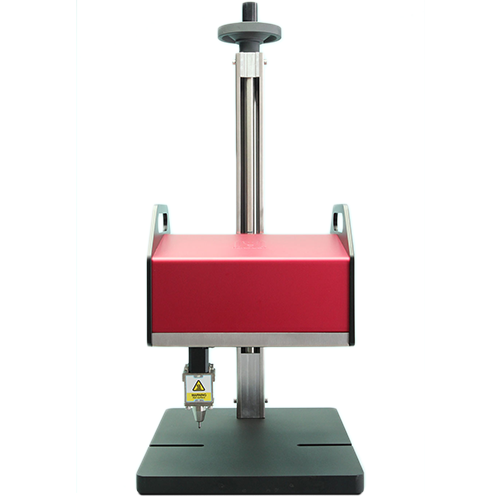

• Stand type: Standard model.

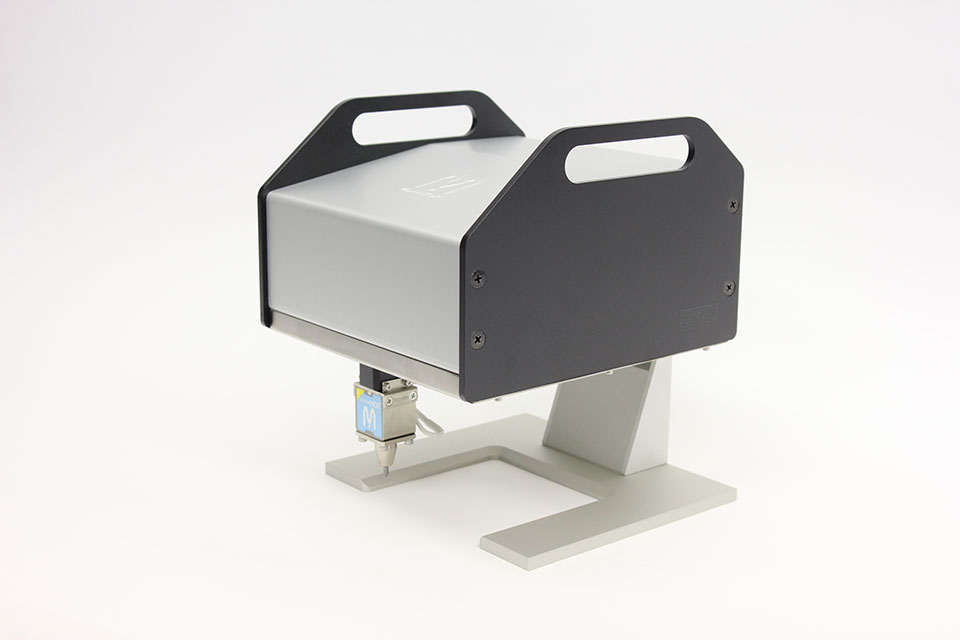

• Handy type: Portable option.
• In-line type: Can be integrated into other machines.
- Windows Based Software
