Linx UVG5
UV laser coder
High performance, easy integration and user-friendly innovation

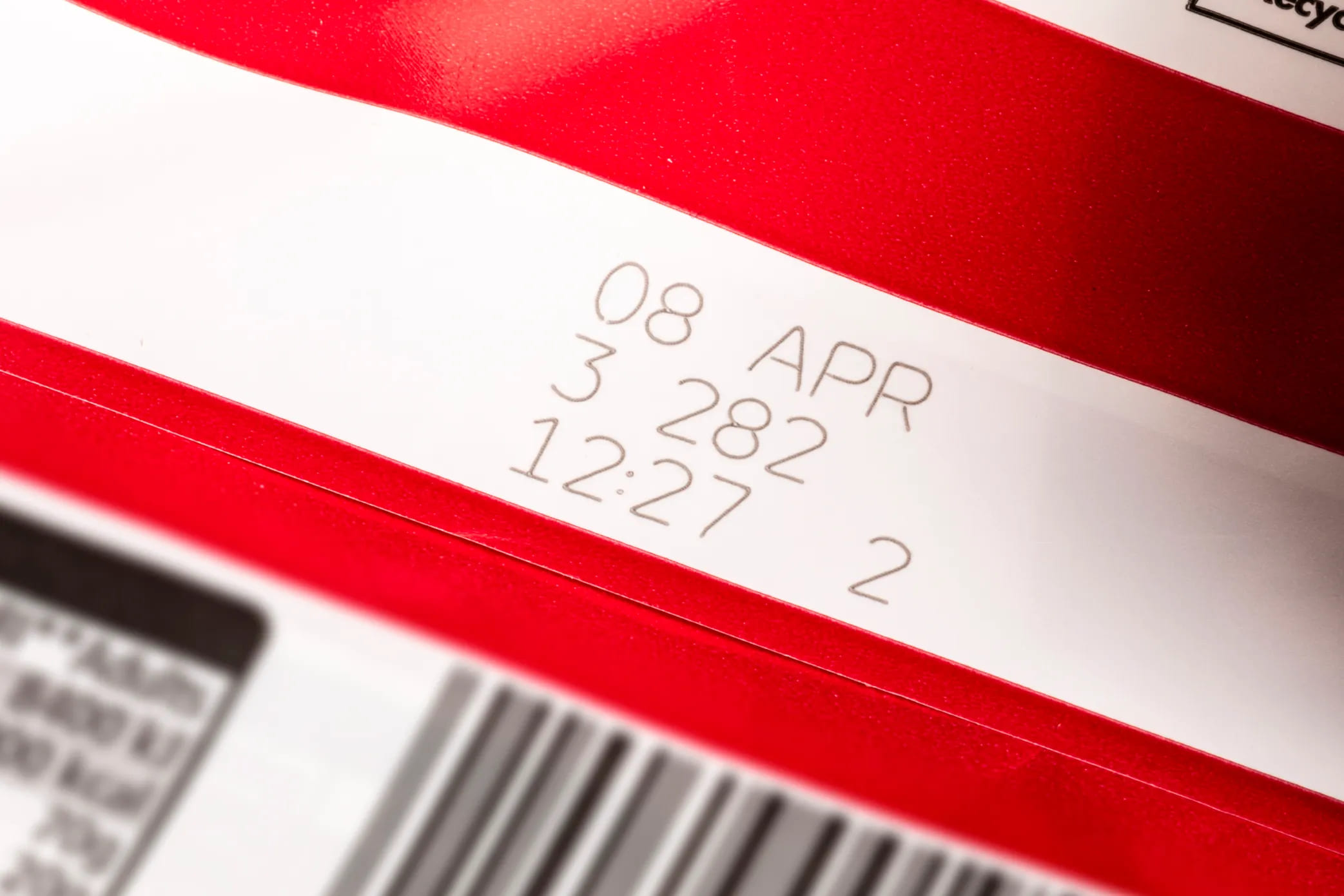

The Linx UVG5 UV laser coder is the ideal solution for permanent marking on flexible films and rigid plastics, without the need for consumables and whilst maintaining the integrity of the substrate. Providing higher production throughput through fast product marking, and with simple integration into existing lines, the easy-to-use Linx UVG5 laser redefines efficiency.
Key Benefits
- Increased product throughput in a shorter time and line utilisation cost savings with marking up to 2000 characters/second
- Reduced risk of damage to packaging as the UV laser creates minimal thermal stress on substrates compared to CO2 and Fibre marking
- Highly visible and highly readable traceability codes delivered by smoother-edged codes with higher contrast
- Built-in integrated Focus Shift means quick product changeovers with no mechanical adjustments to the production line for different size products
- Easy integration into existing production lines, even in difficult or space restricted areas with the flexibility of the laser extension and turning units
- User-friendly LinxVision user interface allows mistake-free operator interaction
- Built-in Pilot Laser eliminates costly product waste by ensuring products are marked in the right place
- Operator accuracy and simplified marking distance setup with the built-in Focus Finder
For more information or to speak to our team about whether the Linx UVG5 is right for your needs.
UV laser marking
UV lasers are different to other marking lasers such as CO2 and fibre. UV uses high-energy photons to break chemical bonds in materials, a process known as ‘cold processing’, which minimises thermal damage to surrounding areas.
By minimising thermal stress, UV laser marking ensures substrate integrity and reduces the risk of damage, making it an ideal choice for marking sensitive materials where traditional CO2Â and fibre lasers may cause undesirable effects.
Technical Specification
- UV laser coder
- Maximum laser output: 4W
- Laser tube wavelengths: 355 nm
- Line speed: up to 600 m/min (application dependent)
- Maximum marking speed: 1200 m/min (application dependent)
- Marking area: Up to 259 mm x 393 mm
- Number of lines of text: only limited by character size and marking field size
- Character height: up to marking field size
- Print rotation: 0-360°
- Head mounting options: down (90°), or straight shooter (0°), variable length Beam Extension Units (BEU), 90° Beam Turning Unit (BTU)
- Pilot Laser, focus finder and focus shift, available as standard
- Code options: Code options: date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D Data Matrix, QR including GS1.
- IP rating protection class: IP54 or IP65 (optional)
